4-20mA sensors

temperature, speed, and the overall vibration

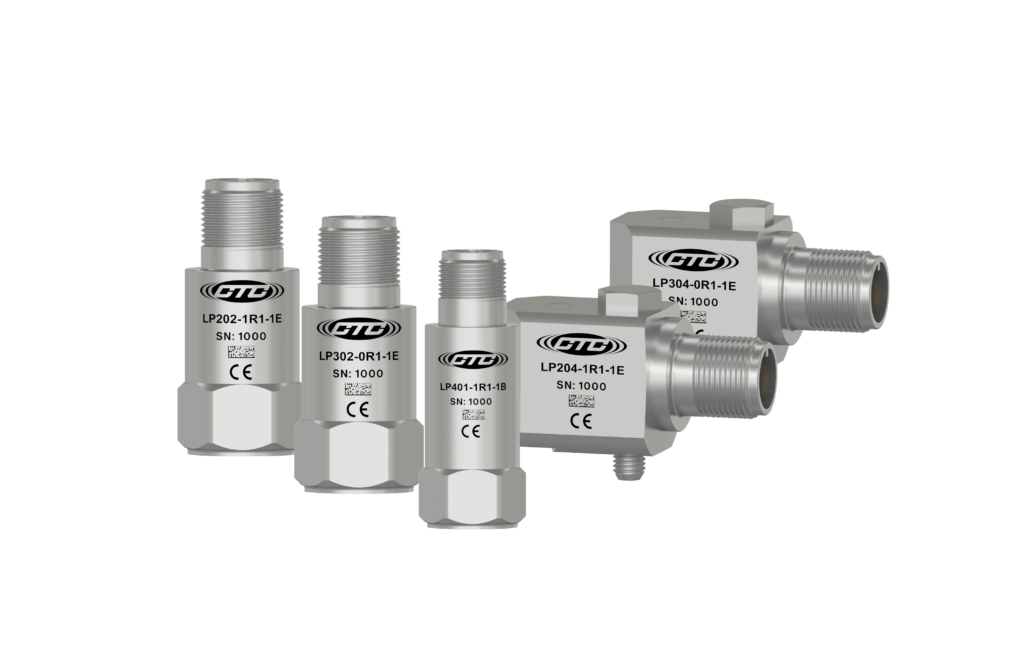

[NEW] 4-20mA loop power sensors

CTC offers you the industry’s largest selection of 4-20mA solutions to measure temperature, speed, and the overall vibration of rotating machines in the most demanding environments.

Get a quote

#1 \| Multiple Output Options	Select from output proportional to vibration in velocity (LP200 Series) or output proportional to vibration in acceleration (LP300 Series).
#2 \| Durable Case Material	316L stainless steel case provides added corrosion resistance compared to our competitors.
#3 \| Rugged Construction	Welded, hermetic seal is helium leak tested prior to shipment to ensure the highest quality performance in demanding conditions.
#4 \| Superior Shear Mode Sensing Element	Eliminates erroneous output due to thermal transient interference in low frequency models.
#5 \| High Voltage Isolated Options	Increase safety and signal integrity in high-voltage applications.
#6 \| Seamless Compatibility	Integrates effortlessly with plant PLC, DCS, and SCADA systems.
#7 \| Industry-Leading Lifetime Warranty	The manufacturer’s lifetime warranty confirms the high quality and reliability of CTC products.

LP200 Series 4-20 mA loop power sensors for process control applications output current proportional to the machine’s overall vibration in velocity. Dual output LP200 Series sensors are also offered and provide output proportional to the machine’s vibration in velocity as well as temperature output. These sensors are designed to transmit signals over long distances without signal loss, and are easily integrated with your current PLC, DCS, or SCADA system.CTC’s LP200 Series sensors feature a rugged 316L stainless steel case, a welded hermetic seal for added protection, a PZT ceramic sensing element, and superior shear-mode sensing structure. Choose from top exit two-pin connector, integral cable, and armored integral cable configurations to meet the needs of your specific industrial application.

#1	LP202 Loop power sensor, 4-20 mA output proportional to vibration in velocity, top exit 2 pin connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Velocity	Go to the datasheet
#2	LP202-M12E Loop power sensor, 4-20 mA output proportional to vibration in velocity, top exit 4 pin M12 connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Velocity	Go to the datasheet
#3	LP204 Loop power sensor, 4-20 mA output proportional to vibration in velocity, side exit 2 pin connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Velocity	Go to the datasheet
#4	LP204-M12E Loop power sensor, 4-20 mA output proportional to vibration in velocity, side exit 4 pin M12 connector. -20 to 100°C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Velocity	Go to the datasheet
#5	LP262 Dual output loop power sensor, 4-20 mA output proportional to vibration in velocity with °c temperature output, top exit 3 pin connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Velocity	Go to the datasheet
#6	LP264 Dual output loop power sensor, 4-20 mA output proportional to vibration in velocity with °c temperature output, side exit 3 pin connector. -20 to 100°C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Velocity	Go to the datasheet
#7	LP284 Loop power sensor, 4-20 mA output proportional to vibration in velocity, side exit 2 pin connector, M8x1.25 captive bolt. -20 to 100°C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Velocity	Go to the datasheet
#8	LP284-M12E Loop power sensor, 4-20 mA output proportional to vibration in velocity, side exit 4 pin connector, M8x1.25 captive bolt. -20 to 100°C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Velocity	Go to the datasheet
#9	LPT202 Loop power triaxial sensor, 4-20 mA output proportional to vibration in velocity, side exit 6 pin connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing Continuously Monitor & Protect Important Machinery	Go to the datasheet

CTC’s LP300 Series loop power vibration sensors for continuous machine health monitoring output a 4-20 mA current proportional to the machine’s overall vibration in acceleration. Dual output LP300 Series sensors are also available and provide 4-20 mA output proportional to vibration in acceleration plus temperature output. These loop power sensors transmit signals over long distances with no signal loss and are compatible with your existing PLC, DCS, or SCADA monitoring system.LP300 Series sensor construction highlights include durable 316L stainless steel case, welded, hermetic seal for superior ingress protection, PZT ceramic sensing element, and shear-mode sensing structure. Standard top exit two pin connector, integral cable, and armored integral cable configurations are available.

#1	LP302 Loop power sensor, 4-20 mA output proportional to vibration in acceleration, top exit 2 pin connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Acceleration	Go to the datasheet
#2	LP302-M12E Loop power sensor, 4-20 mA output proportional to vibration in acceleration, top exit 4 pin M12 connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Acceleration	Go to the datasheet
#3	LP304 Loop power sensor, 4-20 mA output proportional to vibration in acceleration, side exit 2 pin connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Acceleration	Go to the datasheet
#4	LP304-M12E Loop power sensor, 4-20 mA output proportional to vibration in acceleration, side exit 4 pin M12 connector. -20 to 100°C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Acceleration	Go to the datasheet
#5	LP362 Dual output loop power sensor, 4-20 mA output proportional to vibration in acceleration with °C temperature output, top exit 3 pin connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Acceleration	Go to the datasheet
#6	LP364 Dual output loop power sensor, 4-20 mA output proportional to vibration in acceleration with °C temperature output, side exit 3 pin connector. -20 to 100°C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Acceleration	Go to the datasheet
#7	LP384 Loop power sensor, 4-20 mA output proportional to vibration in acceleration, side exit 2 pin connector, M8x1.25 captive bolt. -20 to 100 °C Temperature Range Welded, Hermetic Sealing 4-20 mA Current Proportional to Vibration in Acceleration	Go to the datasheet
#8	LP384-M12E Loop power sensor, 4-20 mA output proportional to vibration in acceleration, side exit 4 pin M12 connector, M8x1.25 captive bolt. -20 to 100 °C Temperature Range 4-20 mA Current Proportional to Vibration in Acceleration	Go to the datasheet
#9	LPT302 Loop power triaxial sensor, 4-20 mA output proportional to vibration in acceleration, side exit 6 pin connector. -20 to 100 °C Temperature Range Welded, Hermetic Sealing Continuously Monitor & Protect Important Machinery	Go to datasheet

CTC’s premium LP500 Series 4-20 mA loop power sensors feature velocity output and are available in single-axis, dual-output, and triaxial configurations.LP500 Series premium velocity output loop power sensors feature:

Improved filter performance (2nd order)
Higher temperature rating (125 C)2 Hz response
A new secondary ISO 2 Hz – 1 kHz filter range
Choose from the top exit two-pin connectors, integral cable, and armoured integral cable configurations to meet the needs of your specific industrial application.

#1	LP502 Premium loop power sensor, 4-20 mA output proportional to vibration in velocity, top exit 2-pin connector. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#2	LP502-M12E Premium loop power sensor, 4-20 mA output proportional to vibration in velocity, top exit 4-pin M12 connector. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#3	LP504 Premium loop power sensor, 4-20 mA output proportional to vibration in velocity, side exit 2-pin connector. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#4	LP504-M12E Premium loop power sensor, 4-20 mA output proportional to vibration in velocity, side exit 4-pin M12 connector. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#5	LP562 Premium dual output loop power sensor, 4-20 mA output proportional to vibration in velocity with °C temperature output, top exit 3-pin connector -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#6	LP562-M12A Premium dual output loop power sensor, 4-20 ma output proportional to vibration in velocity with °C temperature output, top exit 4-pin M12 connector -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#7	LP564 Premium dual output loop power sensor, 4-20 mA output proportional to vibration in velocity with °C temperature output, side exit 3-pin connector. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#8	LP564-M12A Premium dual output loop power sensor, 4-20 mA output proportional to vibration in velocity with °C temperature output, side exit 4-pin M12 connector. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#9	LP584 Premium loop power sensor, 4-20 mA output proportional to vibration in velocity, side exit 2-pin connector, m8x1.25 captive bolt. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#10	LP584-M12E Premium loop power sensor, 4-20 mA output proportional to vibration in velocity, side exit 4-pin connector, m8x1.25 captive bolt. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
#11	LPT502 Premium loop power triaxial sensor, 4-20 ma output proportional to vibration in velocity, side exit 6-pin connector. -40 to 125 °C Temperature Range Welded, Hermetic Sealing New 2nd-Order Filters Deliver Sharper Response and Greater Stopband Attenuation for Cleaner Measurements	Go to the datasheet
