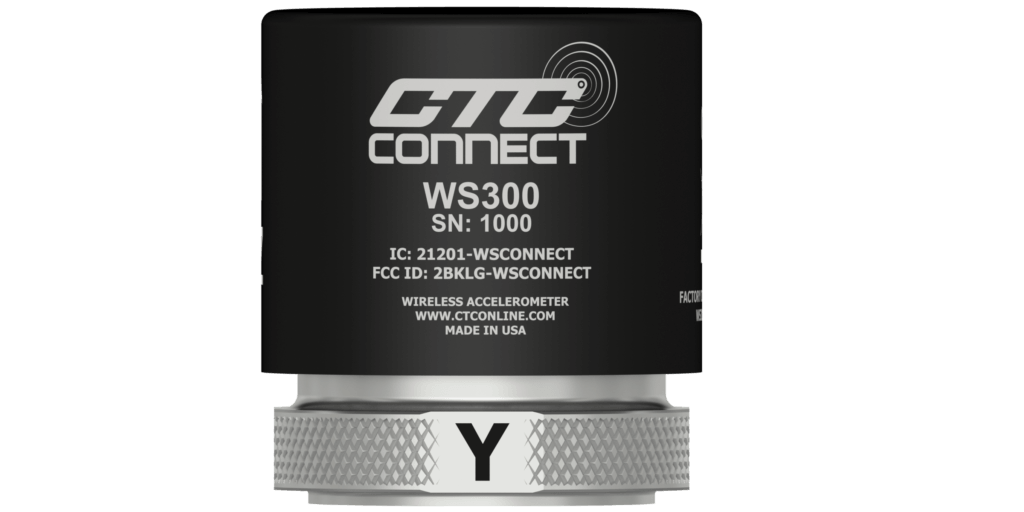

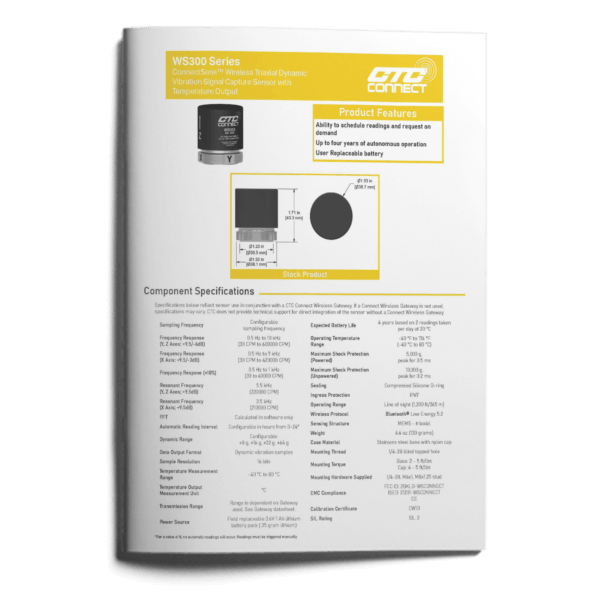

WS300 ConnectSens™

wireless sensor with triaxial dynamic vibration signal capture with temperature output

[NEW] WS300

CTC’s WS300 Series ConnectSens™ wireless vibration sensors provide triaxial dynamic vibration signal capture and temperature measurement, offering a versatile solution for predictive maintenance in industrial applications.

With up to four years of autonomous operation on a user-replaceable battery, these sensors deliver reliable performance in challenging environments.

The WS300 Series features configurable sampling frequencies, a wide dynamic range of up to ±64 g, and a robust IP67-rated design, ensuring durability and accuracy.

Get a quote

Seamless connectivity via Bluetooth® Low Energy 5.2 allows for efficient data collection using CTC’s ACCESS360 gateways, enabling remote monitoring and reliable insights.

The WS300 sensors are a cost-effective and scalable solution for enhancing condition monitoring programs across various industries.

Up to four years of autonomous operation within one battery
Money-saving user-replaceable battery
User-programmable sampling frequency, reading length, dynamic range, and reading interval
Features the ability to request a reading on demand

Wireless gateways

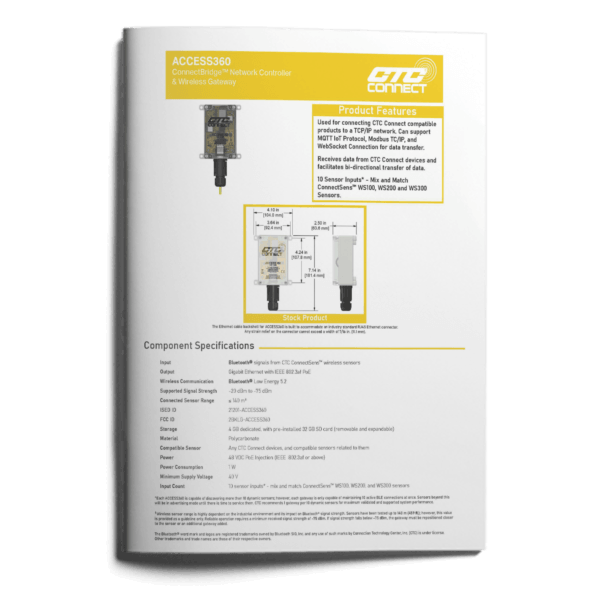

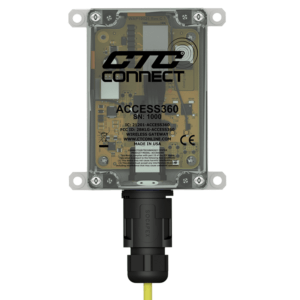

1.	The CTC ACCESS360 ConnectBridge™ Wireless Gateway is the central hub for your CTC Connect wireless vibration monitoring system. Designed to seamlessly connect CTC ConnectSens™ sensors to your TCP/IP network, this powerful gateway facilitates bi-directional data transfer and acts as a site master to control and store critical asset data. Featuring Bluetooth® Low Energy 5.2 communication and a gigabit Ethernet output with PoE support, it ensures fast and secure integration into your existing infrastructure. Its rugged IP67-rated design and expandable onboard storage make it ideal for industrial environments. Keep your operations running smoothly with the ACCESS360 ConnectBridge™, your gateway to smarter predictive maintenance.	Watch product video

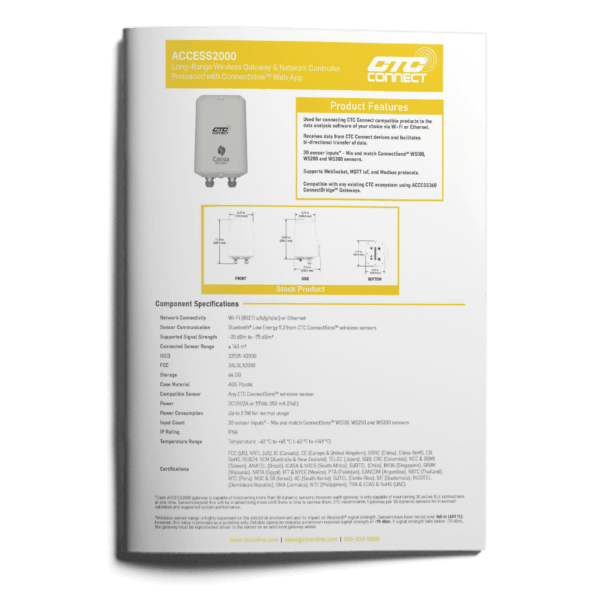

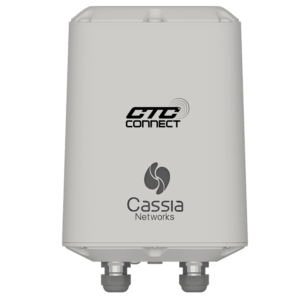

2.	The ACCESS2000 Series is a long-range wireless gateway and network controller used for connecting CTC Connect compatible products to the data analysis software of your choice via Wi-Fi or Ethernet. The ACCESS2000 Series comes pre-loaded with the ConnectView™ Web App and receives data from CTC Connect devices and facilitates bi-directional transfer of data. For your convenience, the ACCESS2000 Series supports WebSocket, MQTT IoT, and Modbus protocols. The ABS plastic, IP66‑rated enclosure also offers a wide temperature range of -40 °C to +65 °C to provide reliability in demanding environments.	Watch product video
Mounting accessories

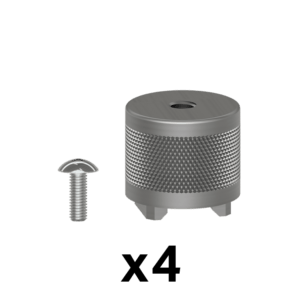

3.	ACCESS360-MH – mounting hardware kit for CTC ACCESS360; includes four MH153-1A magnets and four MH108-48B M5 panhead screws
4.	MH108-48B – M5 pan head screw; replacement screw for ACCESS360-mh and boxmount-1A kits.
Wireless gateway power supplies
5.	PSW12-US – 75W constant power mode switching power supply, for use with ACCESS2000 SERIES long-range wireless gateway.
App
6.	ConnectView™ is CTC’s powerful web-based application designed to simplify wireless vibration monitoring and sensor management while offering seamless integration with third-party vibration data analysis software. Preloaded on the ConnectBridge™ Gateway, ConnectView™ requires no additional downloads and is accessible from any PC, laptop, tablet, or smartphone connected to the same network. The app provides intuitive data visualisation through time waveform and FFT graphs, historical trending data, and real-time sensor status updates. Users can easily configure sensors, set alert thresholds, adjust sampling intervals, and organise devices into machine groups for streamlined monitoring. With built-in battery level tracking and alert notifications, ConnectView™ ensures proactive maintenance and optimised performance of CTC Connect wireless systems.	Watch product video

Flat surface magnets
1.	MH104-1B – Flat Surface Magnet Mounting Base with 1/4-28 Integral Mounting Stud, 60 lbs. (27 kg) Pull Strength, 1.25 in. (31.75 mm) OD, 0.46 in. (11.68 mm) Height	Watch product video

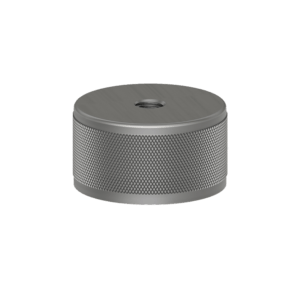

2.	MH123-1A – Flat Surface Magnet Mounting Base with 1/4-28 Threaded Mounting Hole, 60 lbs. (27 kg) Pull Strength, 1.25 in. (31.75 mm) OD, 0.68 in. (17.27 mm) Height	Watch product video
Multipurpose magnets

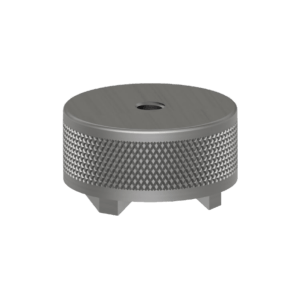

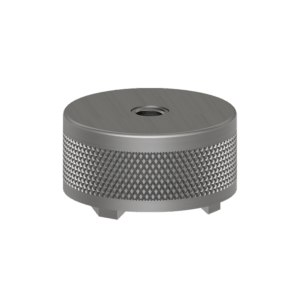

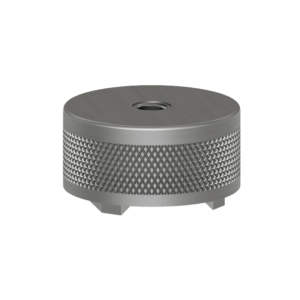

3.	MH114-3A – Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height	Watch product video
4.	MH114-3B – Electrically Isolated, Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height	Watch product video

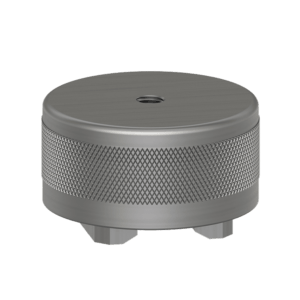

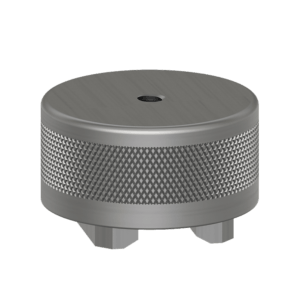

5.	MH115-2A – Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 95 lbs. (43 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.08 in. (27.43 mm) Height	Watch product video
6.	MH115-2B – Electrically Isolated, Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 95 lbs. (43 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.08 in. (27.43 mm) Height	Watch product video
7.	MH214-3A – Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench Included	Watch product video
8.	MH214-3B – Multipurpose 2 Rail Magnet Mounting Base with M6x1 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench Included	Watch product video
9.	MH140-1A – Ultra Strong Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 120 lbs. (54 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.1 in. (27.94 mm) Height	Watch product video

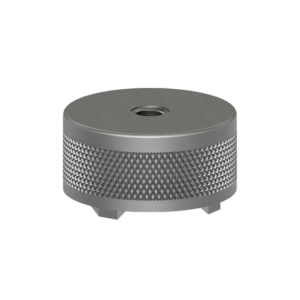

10.	MH214-4A – Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench For Pole Adjustment Sold Separately	Watch product video
11.	MH214-1W – Aluminum Allen Wrench, 1/4 in. Hex Head, for Use with MH214-4A Multipurpose Magnet	Watch product video
Motor fin mount pads
12.	MH118-1A – Motor Fin Mount Probe Pad, 0.5 in. x 1.25 in. (12.7 mm x 31.75 mm) Probe Tip	Watch product video
13.	MH118-2A – Motor Fin Mount Probe Pad, 0.5 in. x 2.0 in. (12.7 mm x 50.8 mm) Probe Tip	Watch product video
14.	MH118-3A – mMotor Fin Mount Probe Pad, 0.25 in. x 1.75 in. (6.35 mm x 44.45 mm) Probe Tip	Watch product video
15.	MH118-4A – Motor Fin Mount Probe Pad, 0.25 in. x 1.0 in. (6.35 mm x 25.4 mm) Probe Tip	Watch product video
Adhesive mounting pads
16.	MH130-3A – Mounting Disk with 1/4-28 Blind Tapped Hole, 1.25 in. (31.8 mm) Diameter	Watch product video
Quick disconnects
17.	MH107-1A – Quick Disconnect Receptacle, 1/4-28 Tapped Sensor Mounting Hole	Watch product video
18.	MH107-1B – Quick Disconnect Stud	Watch product video
19.	MH107-2B – Quick Disconnect Stud with Through-Hole Mounting, 1/4-28 Socket Head Cap Screw Included	Watch product video
20.	MH107-3A – Quick Disconnect Receptacle with 1/4-28 Adjustable Orientation Integral Stud Mounting Bolt, Requires 3/16 in. Allen Wrench (Not Included)	Watch product video
21.	MH107-3B – Quick Disconnect Stud with Through-Hole Mounting, M6x1 Socket Head Cap Screw Included	Watch product video
Do-it-yourself sensor installation tool kit

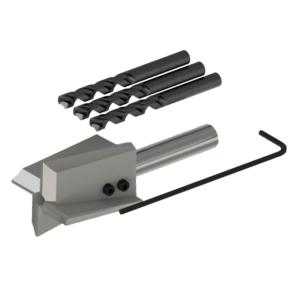

22.	MH117-1A – Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for 1/4-28 Thread MH117-4A – Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for M6x1 Thread MH117-6A – Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for M8x1.25 Thread MH117-11A – Carbide Tipped Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for 1/4-28 Thread	Watch products video

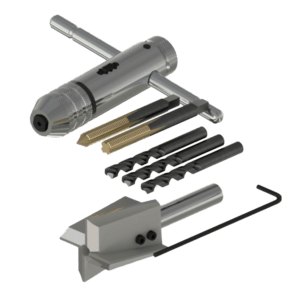

23.	MH117-1B – Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for 1/4-28 Thread, with Tap Set MH117-4B – Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for M6x1 Thread with Tap Set MH117-6B – Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for M8x1.25 Thread with Tap Set MH117-11B – Carbide Tipped Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for 1/4-28 Thread, with Tap Set	Watch products video
Adhesive kit
24.	MH109-2A – Devcon Plastic Welder Adhesive Kit
