MPC4 Mk2 + IOC4 Mk2

machinery protection and condition monitoring modules

Parker Meggitt

MPC4 Mk2 + IOC4 Mk2

MPC4Mk2 – high-quality, high-reliability machinery protection card for VM600Mk2 rack-based machinery monitoring systems.

IOC4Mk2 – high-quality, high-reliability interface (input/output) card for the MPC4 and MPC4SIL machinery protection cards used by VM600Mk2 rack-based machinery monitoring systems.

AMC VIBRO is a distributor of Swiss company Parker Meggitt in Poland, Czechia, Estonia, Latvia, Lithuania, and Slovakia*, a vibro-meter® manufacturer of condition monitoring systems for gas and steam turbines.

*Please, contact your local distributor if you need a quote for end-users from another country.

Get a quote

Applications

The MPC4Mk2 card provides 4 dynamic channels and 2 tachometer (speed) channels, all independently configurable. An MPC4Mk2 machinery protection card is installed in the front of a VM600Mk2 ABE04x rack and requires an IOC4Mk2 card to form a card pair.

Features

  • Available in standard and SIL (safety) versions
  • 4 dynamic channels and 2 auxiliary channels configurable as tachometer or DC inputs
  • VM600Mk2 system safety line to drive all system relays to a safe state
  • Diagnostics (built-in self-test (BIST)) provides continuous feedback on the health of the module
  • Individually configurable inputs (with sensor power supply outputs), channel filters, processing and outputs – with simultaneous data acquisition (fixed frequency or order tracking)
  • High-resolution spectra (FFT) for condition monitoring: up to 6 400 lines every 100 ms
  • Up to 10 processed outputs per channel
  • Multiple alarms per processed output with configurable limits, hysteresis and time delay
  • AND, OR and majority voting logic functions forthe combination of alarm and status information

Technical data

MPC4 Mk2

Monitoring system (application)

machinery protection

VM600 system function

machinery protection

VM600 system component

processing card

VM600 component function

machinery protection

VM600 component and rack compatibility

ABE040, ABE042, ABE056

VM600 card measurement channels

4 dynamic channels and 2 tachometer (speed) channels

IOC4 Mk2

Application

machinery protection

VM600 Mk2 system function

machinery protection

VM600 Mk2 system component

interface (input/output) card

VM600 Mk2 component function

interface (input/output) card

VM600 Mk2 component and rack compatibility

ABE040, ABE042, ABE056

VM600 Mk2 card measurement channels

4 dynamic channels and 2 tachometer (speed) channels

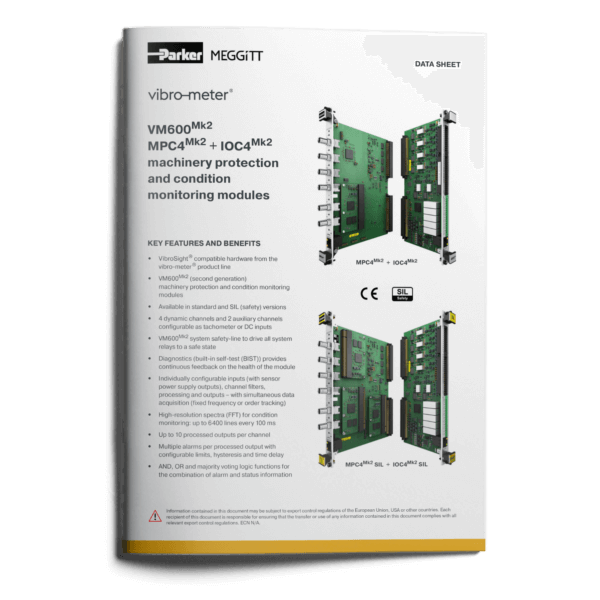

Downloads
