Easy-Laser E420

an entry level laser systems for shaft alignment

Easy-Laser E420

Easy-Laser® E420 is an entry level shaft alignment system, with features you would normally only find in more expensive systems.

Applications

Setting the standard for entry level systems

The Easy-Laser® E420 is an entry level laser systems for shaft alignment. Wireless measuring units, a large 5.7” colour display and an IP65-rated design that withstands harsh environments. These are the features you would normally only find in more expensive systems!

Compact wireless technology

The measuring units are incredibly compact featuring wireless technology, an integrated rechargeable battery and large 20 mm TruePSD detectors. This means that they are easy to install on most types of machines, even where there is limited space. The wireless technology gives you full freedom of movement around the machine that is to be aligned.

Programs for alignment of both horizontal and vertical machines are included. Added to that are functions for soft foot control, thermal growth compensation and tolerance control.

Easy to use

The measurement system is very easy to use. Pre-mounted units make it easy to install on the machine and the programs guide you step-by-step through the process. Start with the measuring units positioned anywhere on the shaft, recording three readings with as little as 20° of rotation between readings. Then adjust the machine with the live values, and save the measurements in the display unit memory. You can also transfer the results to the database EasyLink ™ program (included) for PC. Easy-Laser® E420 has everything an entry level system should have, and more.

Features

  • Compact, wireless measuring units for use on most machine designs.
  • ​Integrated wireless units and rechargeable battery.
  • TruePSD technology with unlimited resolution.
  • Dual PSD, dual laser beams and dual inclinometers for superior control and accuracy.
  • IP65-rated design that withstands harsh environments.

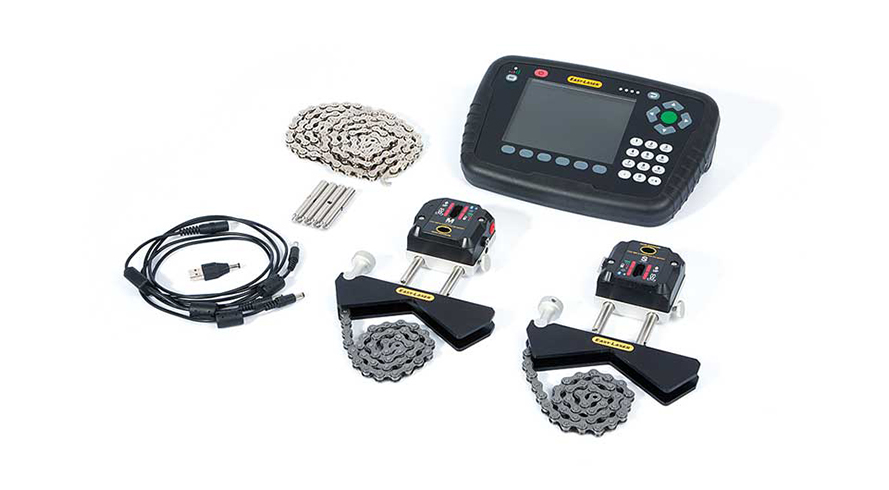

System parts

  • 1 Measuring unit M
  • 1 Measuring unit S
  • 1 Display unit
  • 2 Shaft brackets with chains
  • 2 Extension chains
  • 4 Rods 120 mm  [4.72”]
  • 4 Rods 60 mm  [2.36”]
  • 1 Measuring tape 3 m  [9.8’]
  • 1 USB memory stick with EasyLink™ software
  • 1 USB cable
  • 1 Charger (100-240 V AC)
  • 1 Quick reference manual
  • 1 Carry case
